SharePoint 2016 installation first look

Today Microsoft released the IT Preview of SharePoint 2016.  We’re going to look at the install process today and point out any differences between previous versions of SharePoint.  You can find out more about SharePoint 2016 from the Office blog post.

Installation

I created a new virtual machine running on Windows 10 Hyper-V.  This virtual machine is running Windows Server 2016 Technical Preview 3.  On this server, I have promoted it to a domain controller using Active Directory Directory Services.  I have also installed SQL Server 2014 R2.

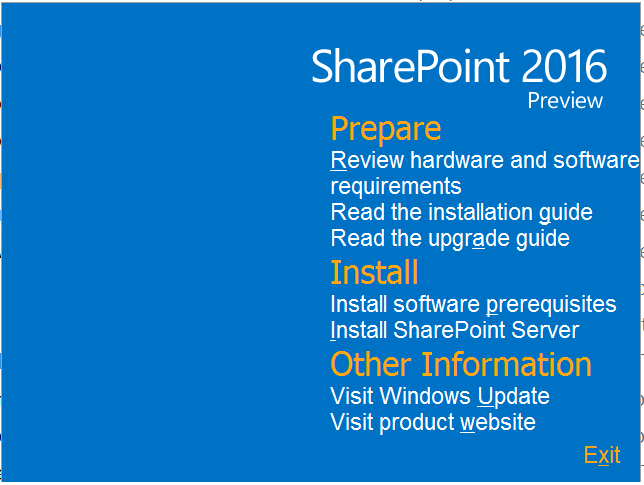

Installation of SharePoint 2016 IT Preview looks similar to previous SharePoint installations.  When you mount the ISO, you will see a familiar splash screen.

SP2016P1Splash

Installing the prerequisites

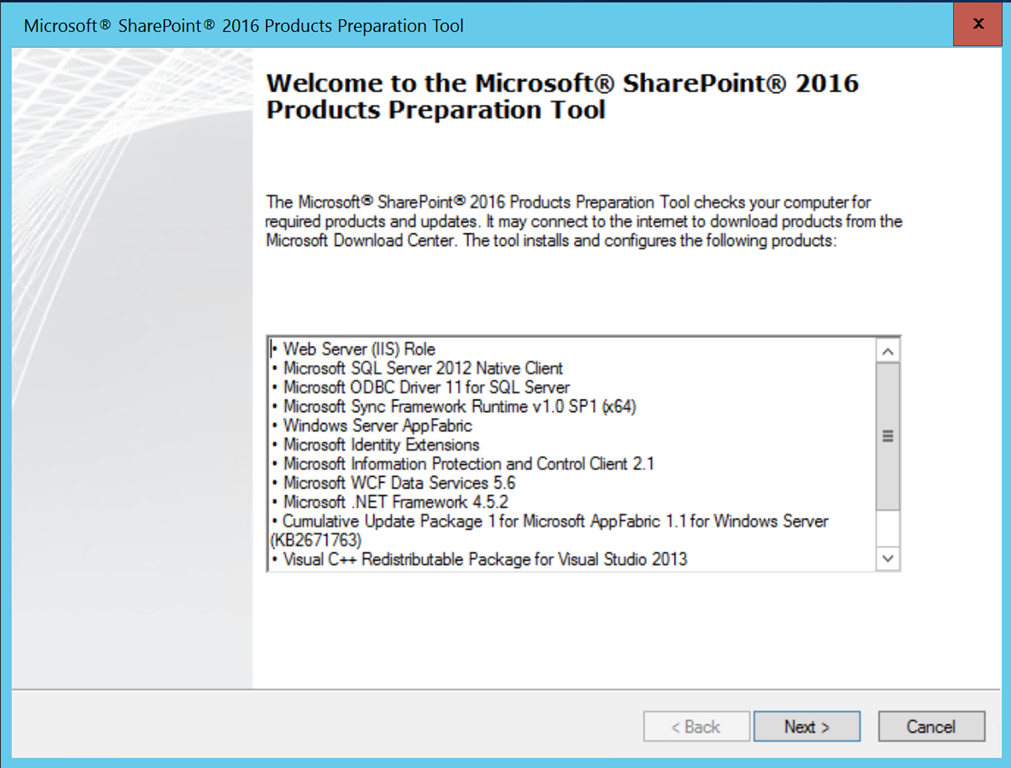

The prerequisite installer looks similar to previous versions.  Click Next to continue.

SP2016P1Prerequisites1

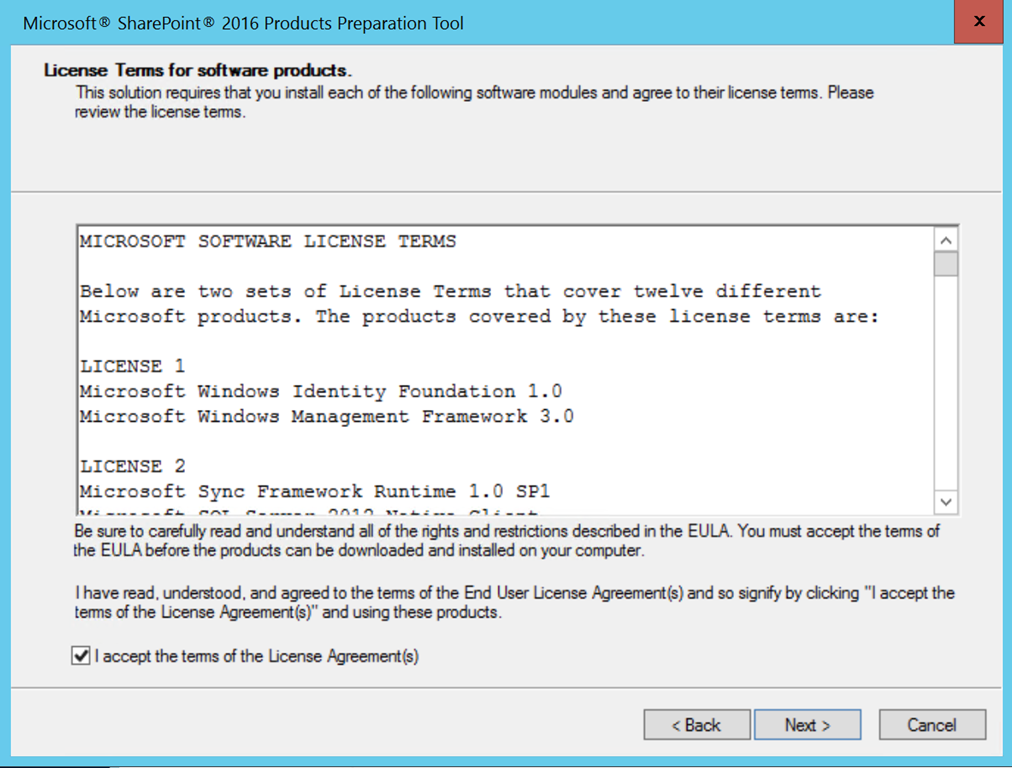

Accept the license terms.

SP2016PrerequisitesLicenseTerms2

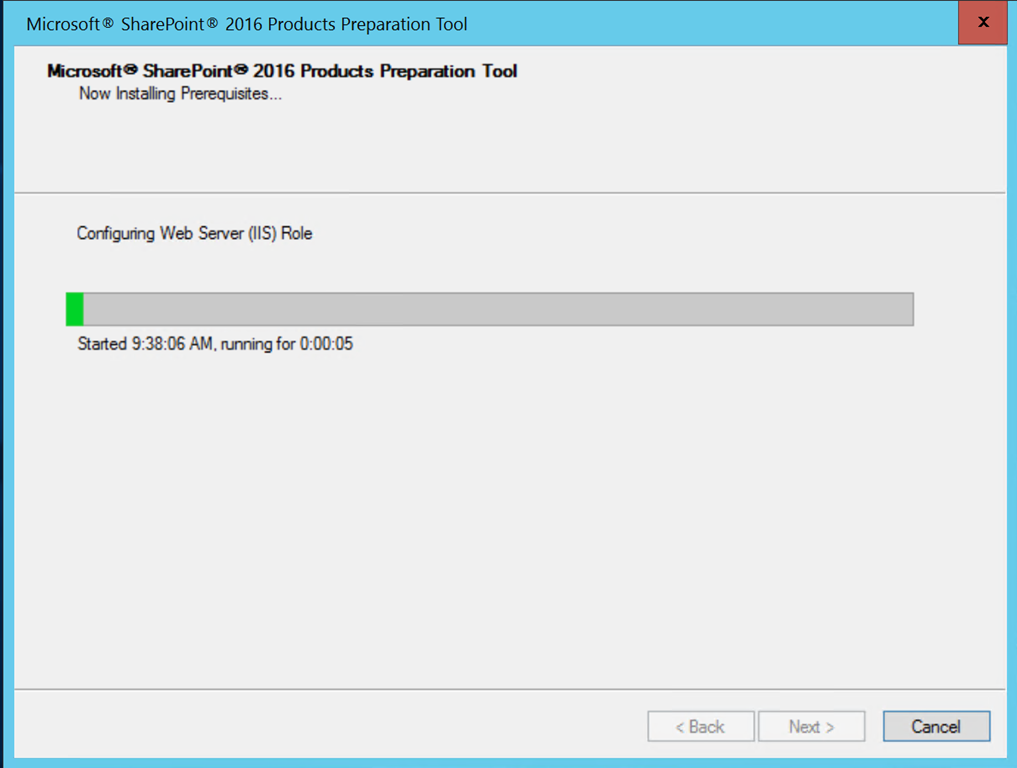

Wait and home it finishes successfully.

SP2016P1PrerequisitesProgress3

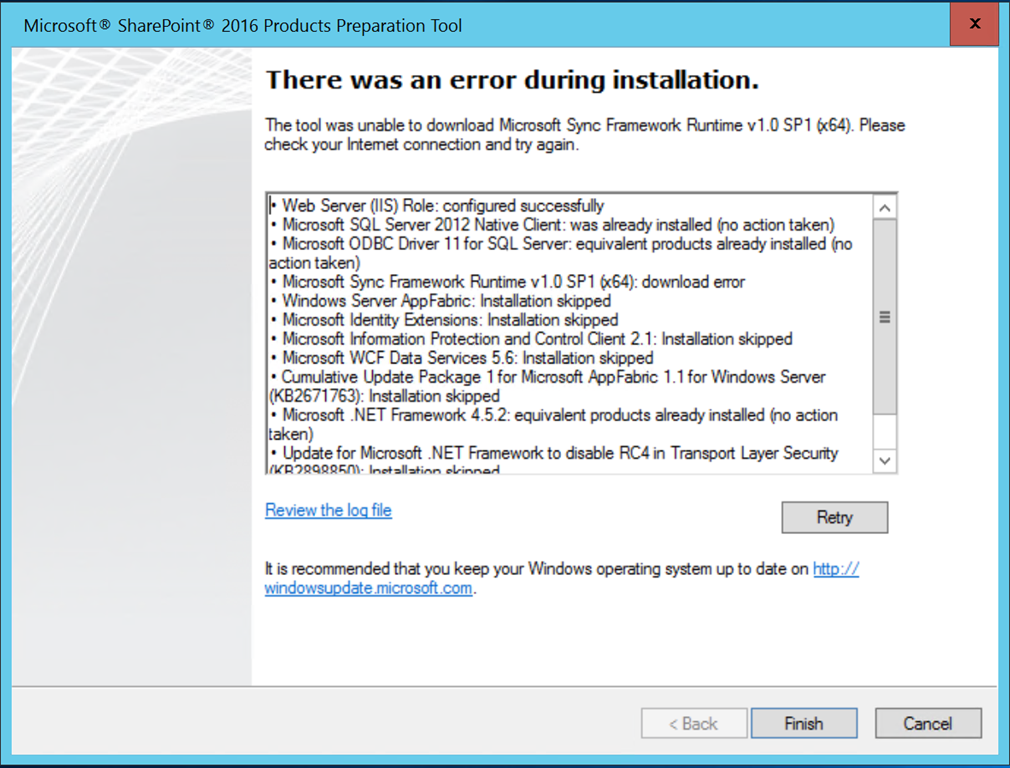

Installation of the SharePoint 2016 IT Preview prerequisites is just as troublesome as previous versions.  I managed to generate a few errors and never did get it to agree the role was successfully installed.  I had to install the Visual Studio 2013 Redistributable myself.  There is a work-around for getting around the IIS role configuration step on the Known Issues in SharePoint Server 2016 Preview page.

SP2016P1PrerequisitesError4

SharePoint 2016 Installation

The installation is quick and easy.  It also looks similar to other versions.  Start by entering the product key.  Remember this was found on the SharePoint 2016 download page.

Sp2016P1InstallProductKey1

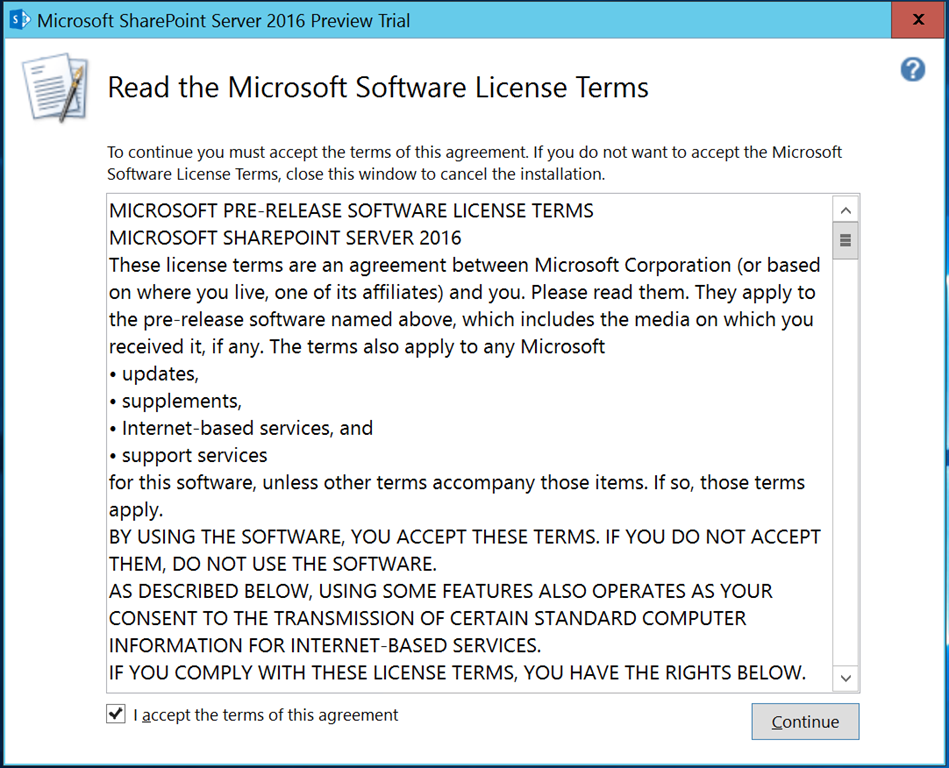

Next, accept some more license terms.

SP2016P1LicenseTerms2

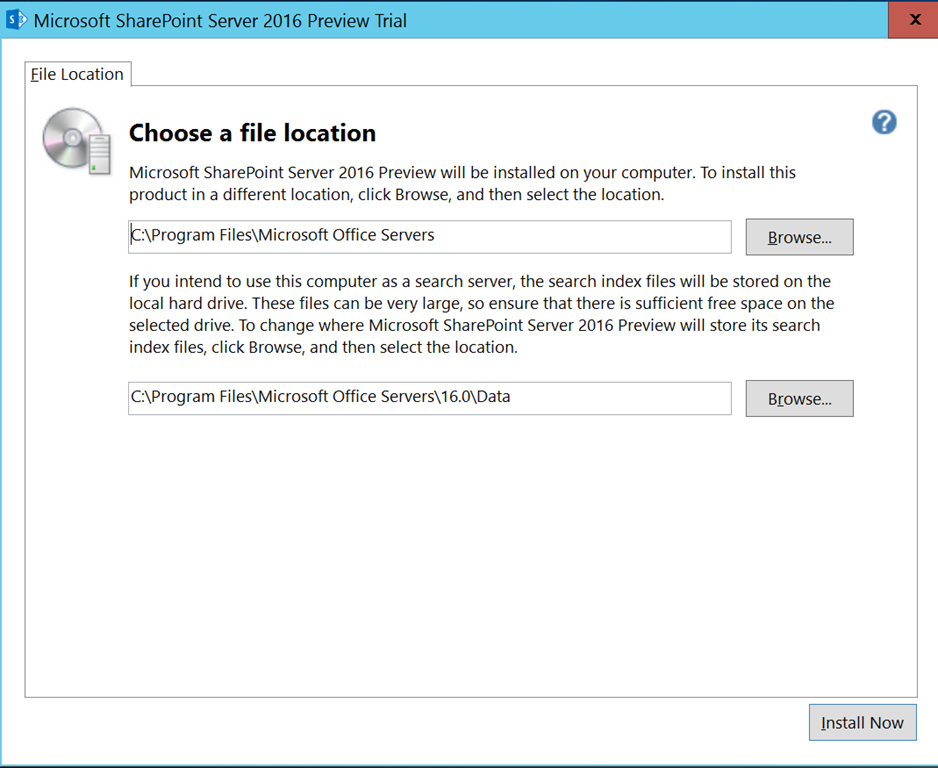

Specify the install location for your search index.  You can just use the defaults for this preview installation.

SP2016P1InstallFileLocations3

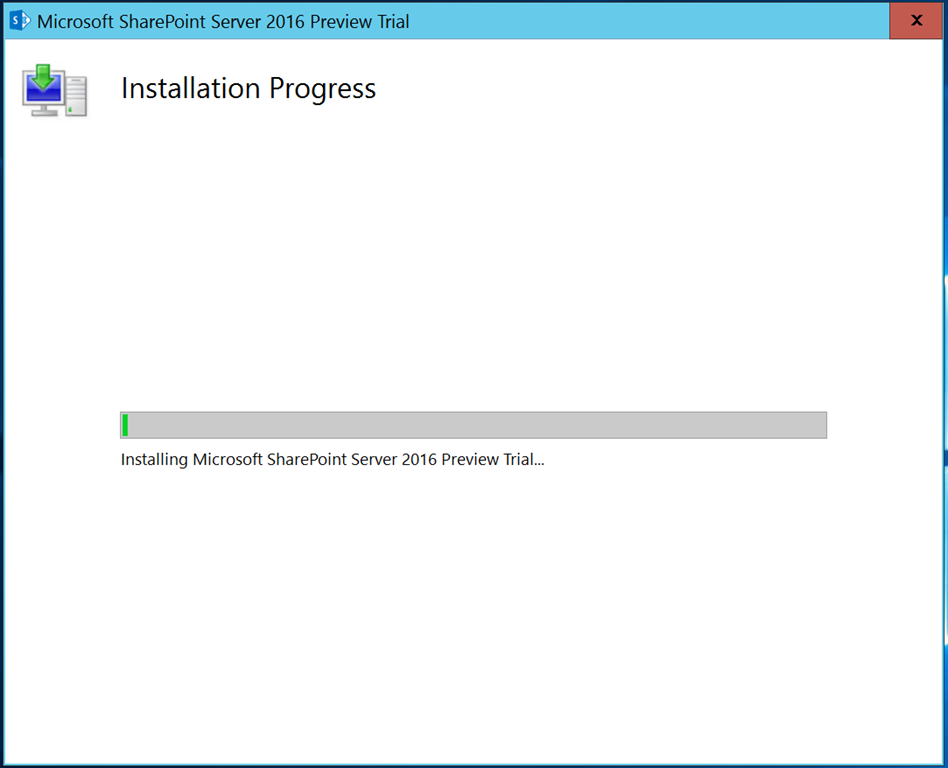

Wait for the installation to complete.

SP2016P1InstallProgress4

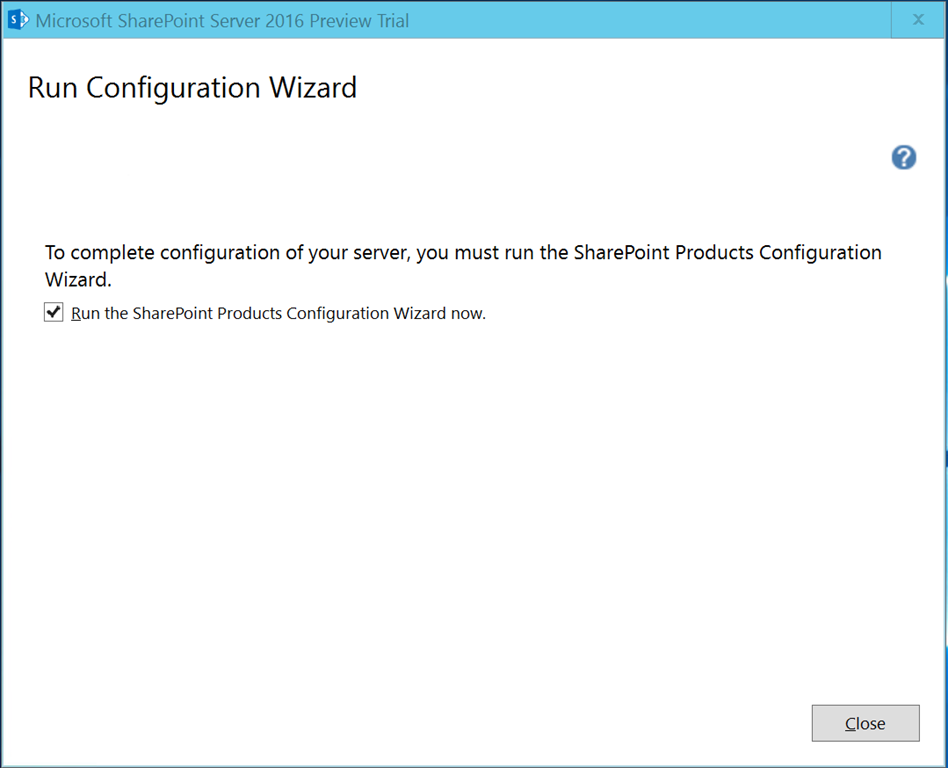

When installation completes, you will be prompted to run the Configuration Wizard.

SP2016P1InstallCompleteRunWizard5

Running the Configuration Wizard

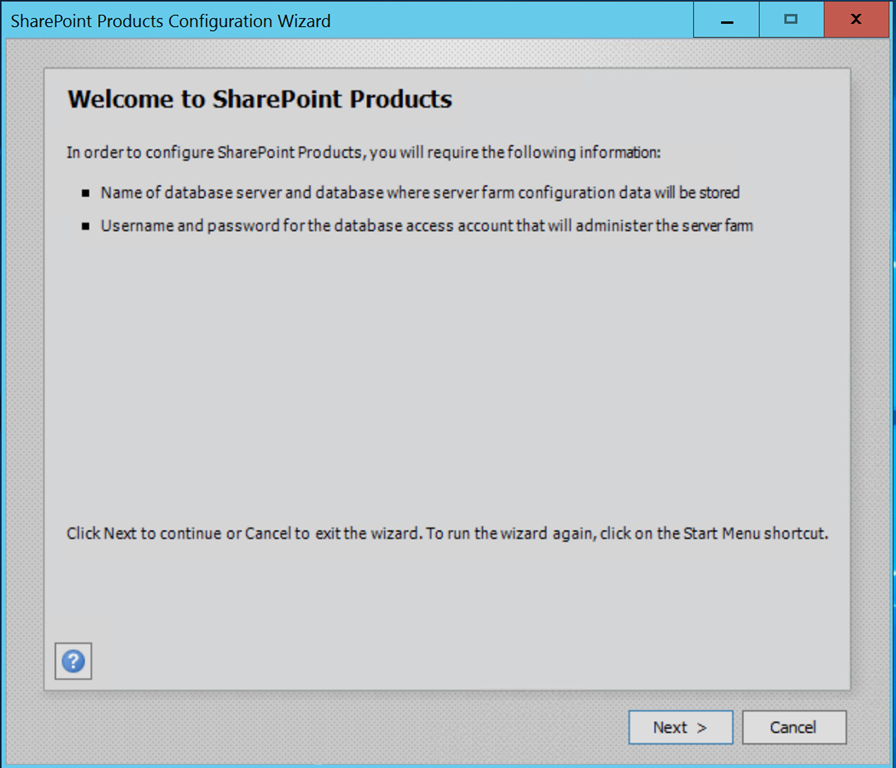

The Configuration Wizard also looks similar but has a few changes.  Click Next to proceed.

Sp2016P1ConfigStart1

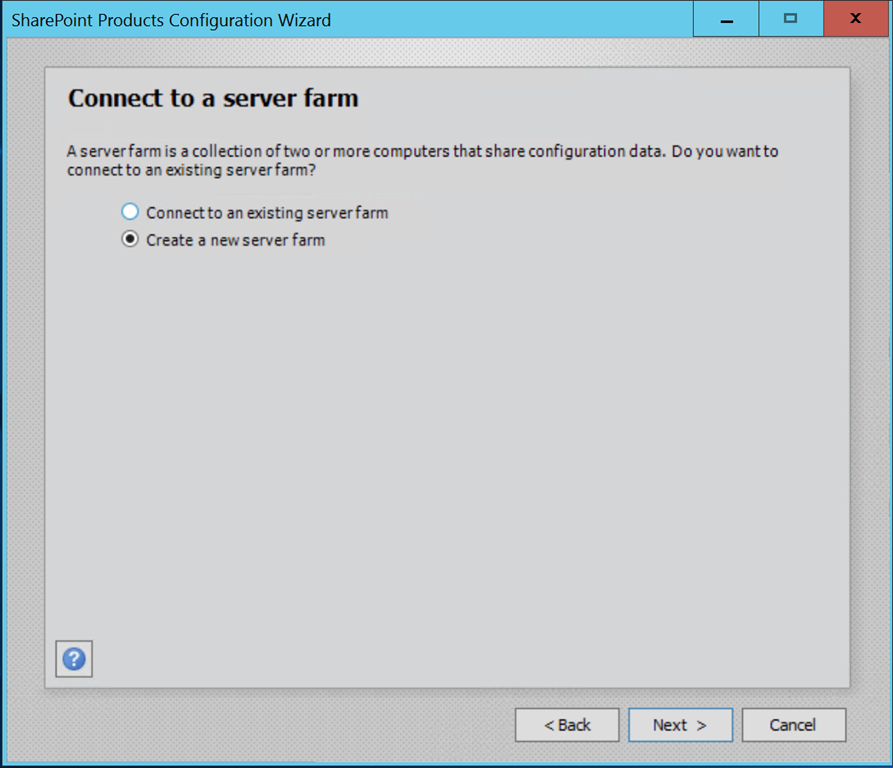

Now, create a new farm.

SP2016P1ConfigNewFarm2

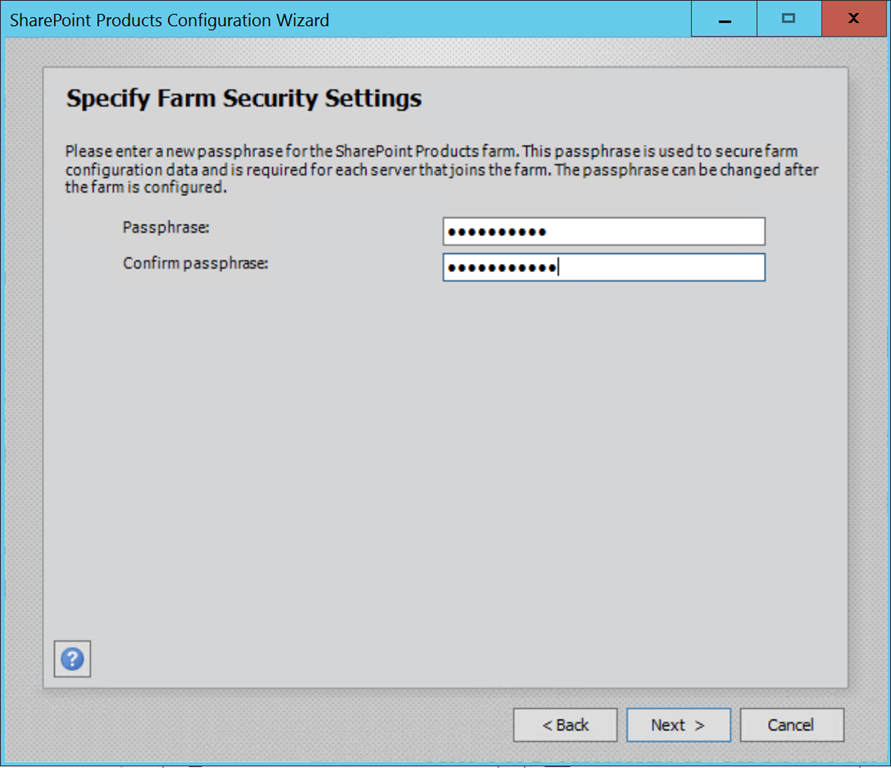

Then, specify your farm passphrase.

SP2016P1ConfigPassphrase

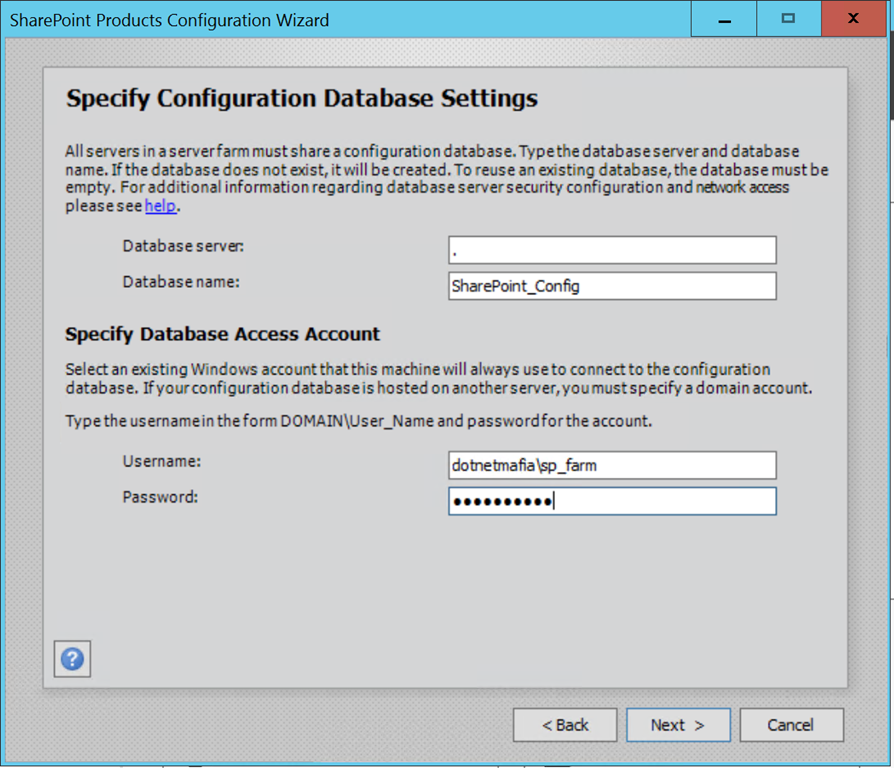

Specify your farm account, SQL Server name and database.

SP2016P1COnfigDatabase3

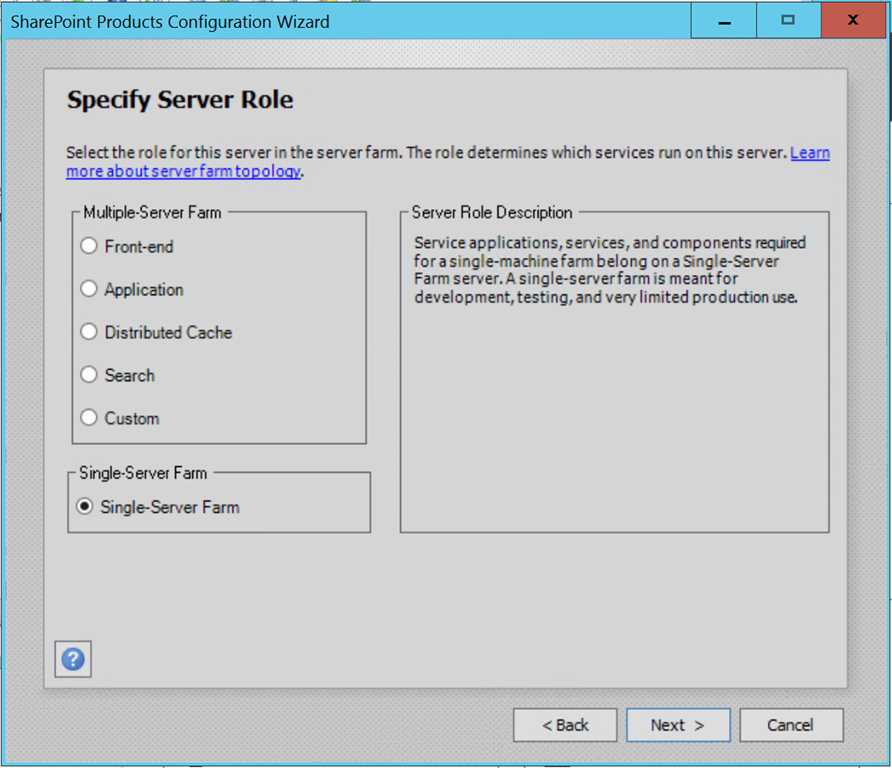

This new screen allows you use the new MinRole feature. MinRole simplifies the server architecture of SharePoint 2016.  In this case, we are going to use a Single Server Farm (which shouldn’t be as bad as previous versions).

Sp2016P1ConfigRole4

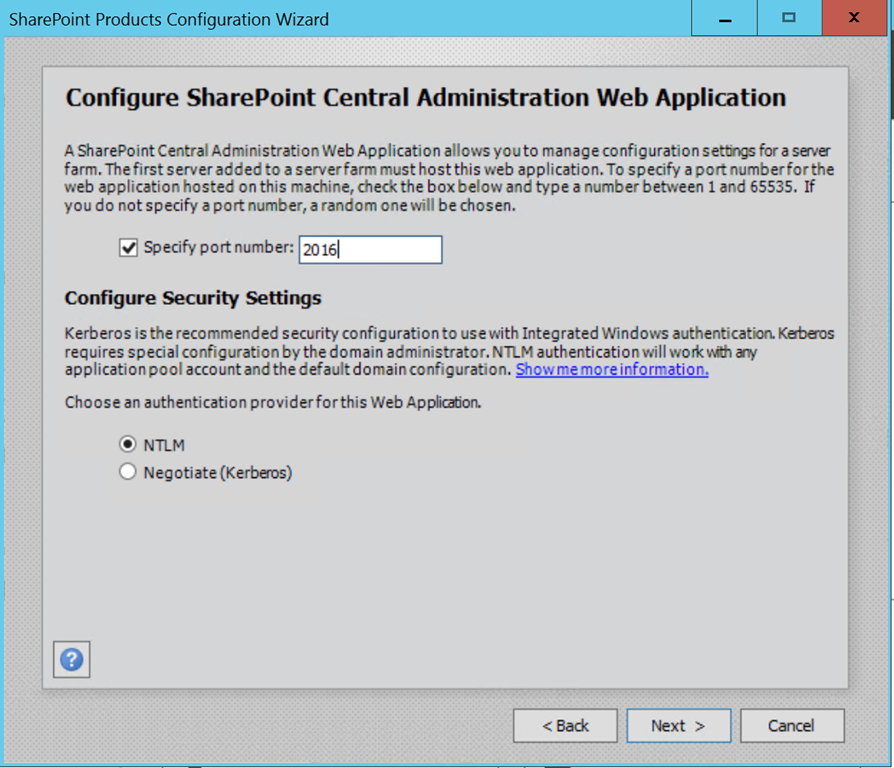

Specify the details for Central Administration.

SP2016P1ConfigCA5

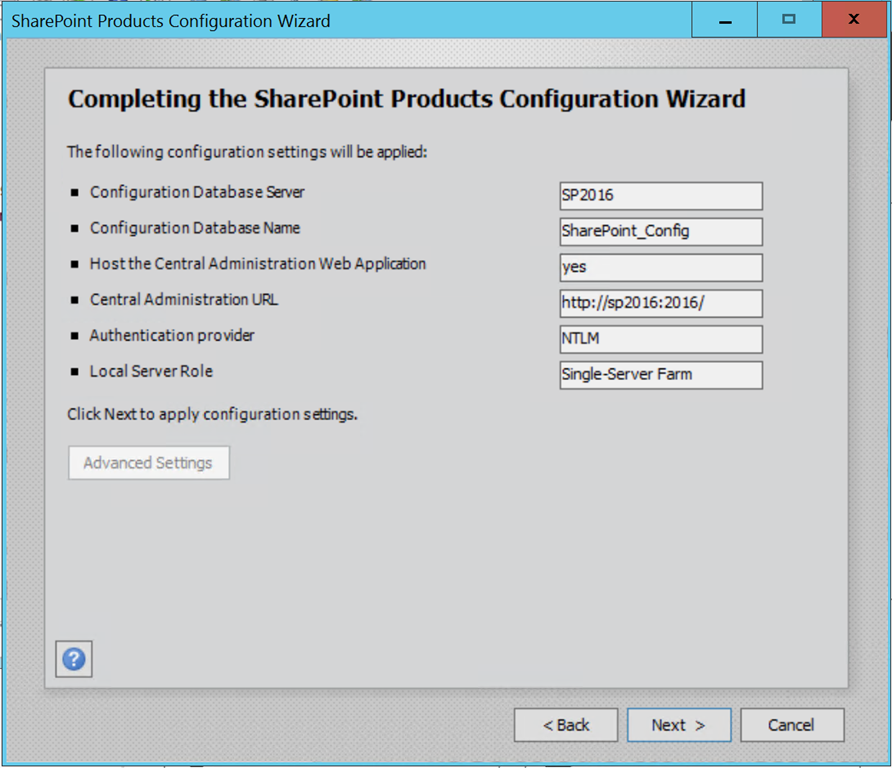

Confirm your settings.

Sp2016P1ConfigConfirmation6

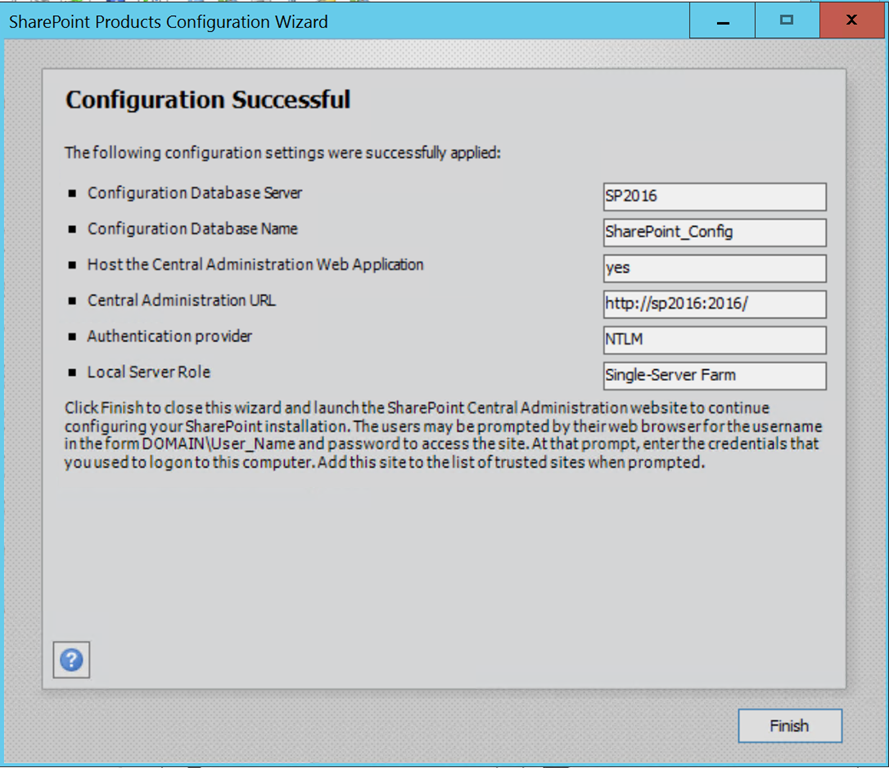

When it finishes, you are ready to try out Central Administration.

Sp2016P1ConfigComplete6

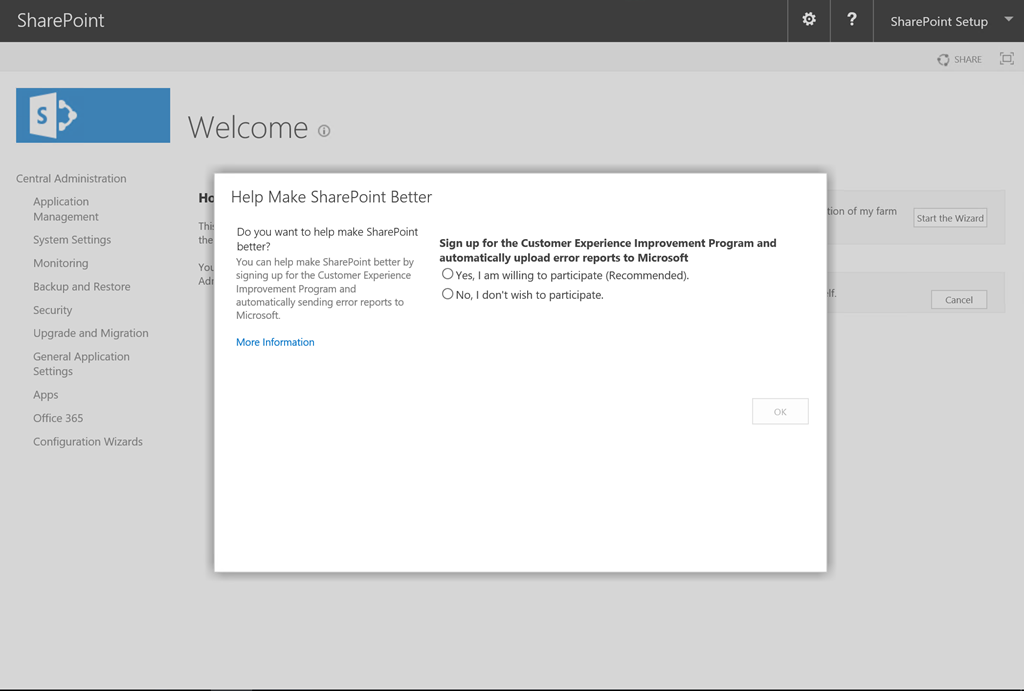

Now, we can start our configuration.

SP2016P1CAOptIn

That’s a quick look at the installation process of SharePoint 2016 IT Preview.  Be on the look out for my next posts covering changes in Central Administration and the UI.
